Sytek Electric's facilities
include top-line, state-of-the-art equipment, enabling us to meet
your requests, regardless how large or urgent. Additionally,
Sytek's winding specialists work in a climate controlled
environment, and are capable of forming specialized coils to meet
your every need.
AC and DC stator coils
are manufactured to OEM specifications in the "clean room"
atmosphere of our climate-controlled Winding Room.
Our rooms contain the equipment to do it
right the first time, and deliver the job on-time!
Form coil manufacturing of
AC or DC coils up to 6,900 volts
Vacuum Pressure Impregnation
(VPI) System with 10 foot diameter tank and a 13' 6" usable depth
Standard varnish tank
measuring 8' x 8' x 8'
Burnout oven capacity
measuring 8' x 8' x 12' equipped with a water mist system and
temperature chart recording capability
Motor test facilities up
through 1,500 KVA / 13,800 volts
Cleaning facilities
including high pressure industrial solvent, steam and sandblasting
This temperature-controlled Burnout Oven
(regulated by a water mist system) is one of the largest in
the Gulf Coast area; its chart recorder provides full
documentation. The Sytek ovens meet all requirements for
air quality and environmental regulations.
Full Voltage
Test Runup to 13,800 Volts! The technologically-advanced
Testing Center provides documentation that details every area of
the motor's performance, both before and after repair.
Dynamic balancing of rotors
up to 12,000 lbs
Vibration analysis and
balancing in shop or in field with CSI 8000 B analyzer (laser and
electromechanical alignment, motor analysis, balance and quality
certification) IRD 245 and 820
Bake oven capacity of 10' x
10' x 14'
Five bridge cranes, largest
is 60 ton capacity
Machine shop with lathes up
to 42" x 108," milling machines, 100 ton vertical hydraulic press
Capability to fabricate and
weld most metals
The Center, as well as the
rest of our facility, is serviced by a 30-ton crane

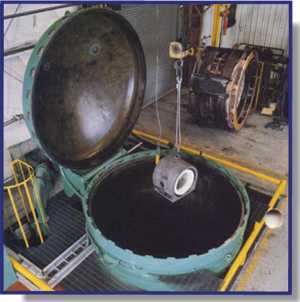

Our huge Vacuum Pressure
Impregnation (VPI) system removes the voids in coils and stator
slots and is large enough to handle virtually any requirement.
The process is fully recorded and documented.
